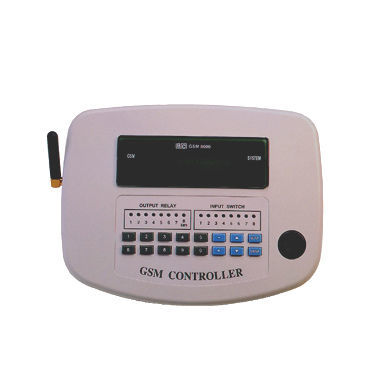

GSM controller BTC GSM-8000

• Control / Monitor / Alarm via GSM mobile phone, no distance limitation. You can control, monitor and receive alarm in any place over the world. All set values are saved into EPROM IC. • Use Short Message commands from mobile to enable or disable analog input alarm, switch input alarm and set relay output on/off. Intelligent application, innovation, wide range, no limitation. • Display : Dot-matrix LCD with back light • GSM Modem : 900/1800 MHz, dual bands • Switch inputs : 8 inputs • Reaction time input : 200 ms, min • Analog input : 8 cannels (4 to 20 mA) • Relay outputs : 8 relays • Operating temperature : 0 to 50°C • Operating humidity : < 80%RH • Power supply : 9V DC • Size : 193 x 149 x 46 mm • Weight : 592 g
