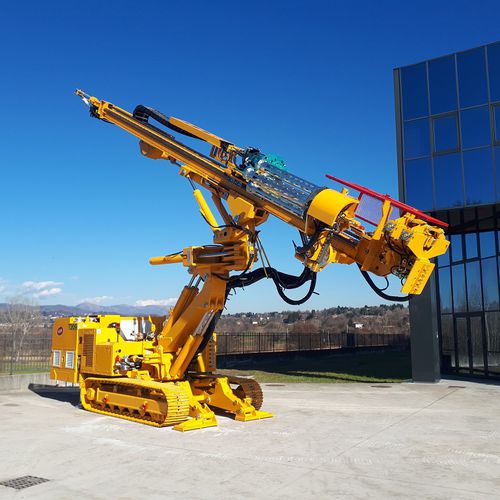

Multifunction drilling rig T209crawlerrotaryhydraulic
Add to favorites
Compare this product
Characteristics
- Applications
- multifunction
- Mobility
- crawler
- Drilling unit
- rotary
- Other characteristics
- hydraulic
- Sector
- construction
- Drilling diameter
Min.: 45 mm
(2 in)Max.: 435 mm
(17 in)
Description
T209
Multipurpose drilling rig with innovative kinematic PATENTED.
Front the wall 210° (105°+105*).
New carousel charger rod & casing PATENTED
TECHNICAL NOTES
EU
US
ENGINE
168-205 KW225-275 HP
MAST WORKING STROKE
7500-9800mm24,5 - 34,4 ft
MAST PULL-PUSH
100-150-200Kn22500-33700-44900 lbf
WEIGHT
25-28 ton55000-62000 lb
Rotary Head Type
TORQUE
RPM
54-1500 (4 SPEEDS)
715-2150 daNm
10700-16000 lb ft30-92
55-6V (6 SPEEDS)
200-2500 daNm
1500-18500 lb ft
28-365
RMS 515-F (4 SPEEDS)
1600-4600 daNm
11800-34000 lb ft15-40
RMS-415
DOUBLE HEAD
970-3000 daNm - casing
18-60 - casing
VIDEO
Catalogs
T209
12 Pages
