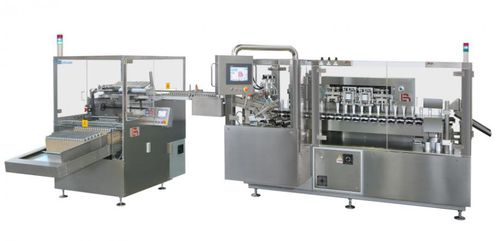

Filling and closing machine for the cosmetics industry TF 200

for sterile applications

The TF 200 is a twin-channels linear automatic filling and closing machine for metal, plastic and laminate tubes. The construction principles, materials used and innovative concepts guarantee maximum productivity, user friendliness and quality, making this machine an ideal solution for the pharmaceutical (even in a sterile environment) and the cosmetic market. The tubes are conveyed on special self-centering pucks. A movement controlled by a brushless motor lifts the pucks containing the tubes towards the dosing nozzles, guaranteeing perfect filling from the tube bottom. This operating method prevents the formation of air pockets in the tube, even when handling difficult products and at high speeds Main features • Linear balcony structure; • Parts in contact with the product of 316 L stainless steel; • Independent brushless motors, for versatile machine configuration; • Removable dosing unit; • Possibility of Combined closing systems without replacement; • Designed for installation under a laminar flow hood; • Easy to use, with simple size change-over; • PC controlled; • Conforms to GMP standards. Technical specifications • Size data • Dosage: from 3 to 250 ml • Filling accuracy: ± 1% for non-aerated products • Tubes diameter: • From 11 to 42 mm (for aluminum tubes) • From 11 to 50 mm (for plastic/laminate tubes) • Tubes Height: from 50 to 240 mm (cap included) Mechanical speed • 9 500 tubes per hour
