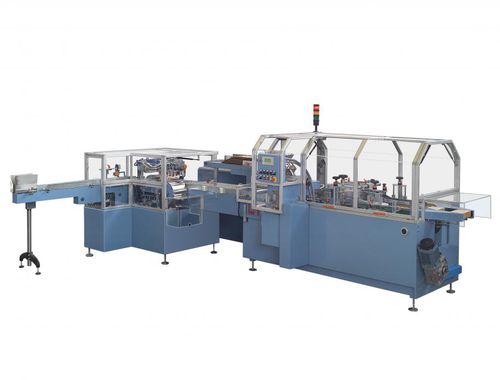

Wrap-around cartoner-tray forming machine AS 70 WA

for the cosmetics industryfor the food industryfor the pharmaceutical industry

The AS70 WA is a tray forming and filling machine suitable for all demands of pharmaceutical, cosmetics and food industries, that can be supplied with various feeding systems. The “wrap-around” customized forming system realized on the product, allows for no space between the product and tray. The open construction frame allows a wide access to the working area as well as extremely simple and comfortable maintenance. The work plane height amount between 800 and 900 mm • All feeding groups are located in ergonomic position, in order to make the loading easy for the operator; • One sensor checks product presence at the infeed and calls the correspondent carton and leaflet (if necessary), enabling the sensors of correct retrieval; • Blanks are positively picked-up from the magazine by a vacuum arm for a positive forming procedure, which guarantees optimal operations with the widest range of trays and cardboard quality; • Trays transport system centrally adjustable; • Widening of the belt transport system performed with hand wheel and digital indicators to suit carton length (“C” dimension); • Product arriving from the infeed system is inserted with a pusher placed on the operator side; • Product introduction on the tray with “NoTray-NoPush” device; • Flap gluing with hot-glue injection device; • After the closing operation, lateral belts discharge the tray; • The touch screen operator interface control panel shows all the machine functions and displays the machine status, as well as fault/alarm messages;
