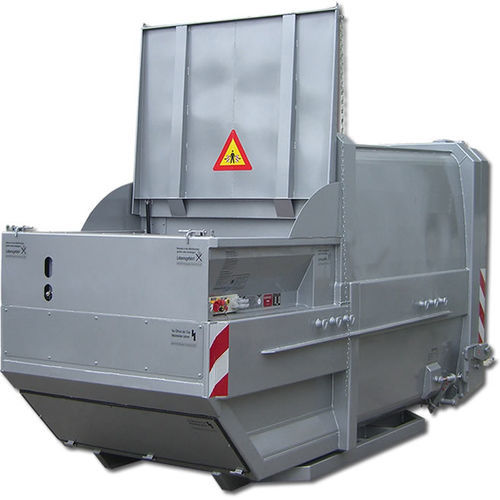

Mobile waste compactor Reducer x4

hydraulicmodular

Safety lock with threaded ratchet for safety door openingcontrol panels safely installedrobust electricsoil level indicator option lid seal all around / rear flap waterproof / seal maintenance door to avoid odour hydraulic cylinder with pivot bearings oil deficiency switch compact unit (no hose pipes of valve-pump connection) lid lockable transformer control (no zero conductor necessary) bottom (header) made of wear-resistant steel 450 HBW convex side panels wiper at drawer made of PE, dynamically supported gas springs for led modular system (for easy spare parts handling) Mobile compactor for chain-loader systems according to DIN 30 730 Smoothline construction, conical shape; With silence pump; Feed opening 835 x 1500 mm; SPS control; With radial sheets (left & right); Primed and coated in RAL colour of your choice; Standard equipment Lid installed front sides 80 % Fill level signal Actuating power: 5,5 kW Fuse protection: 16 A delay Power supply: 400 V / 50 Hz. Hopper height: 1650 mm Upper feed opening: 1200 x 1500 mm Lower feed opening: 835 x 1500 mm Ram capacity / stroke: 1,25 cbm Plunger stroke: 1130 mm Retraction depth: 280 mm Compaction force: 280 kN / m² Cycle time: 33 sec. Hydraulic oil: 35 ltrs. Control voltage: 230 V
