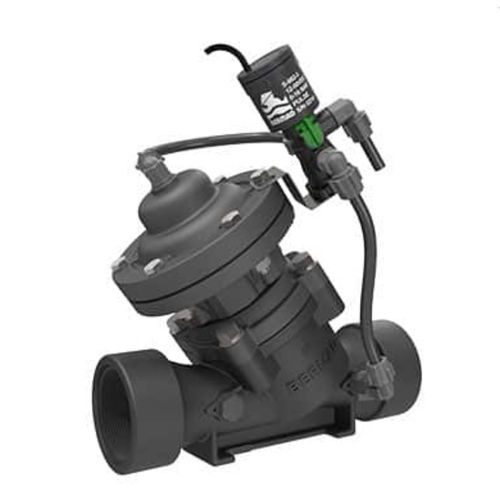

Diaphragm valve IR-110-DC-X

electricdistributiondouble

The BERMAD Model IR-110-DC-X Solenoid Controlled Valve is a double chambered, hydraulically operated, diaphragm actuated control valve that opens and closes drip-tight in response to an electric signal. The valve comprises two major components: the body and the actuator assembly. The actuator assembly is removable from the body as an integral unit. It consists of both upper and lower control chambers, providing Isolated and protected diaphragm The double chambered valve operation is independent of valve differential pressure. This develops maximum power, ensuring immediate valve response combined with inherent soft closing. PRODUCT FEATURES & BENEFITS Hydraulic Control Valve with Solenoid Control Line Pressure Driven . Electrically controlled On/Off. Suitable also for remote and/or elevated systems Double chamber design Full powered opening and closing. Non-slam closing characteristic. Protected diaphragm Engineered Plastic Valve with Industrial Grade Design hYflow ‘Y’ Valve Body with “Look Through” Design. Ultra-high flow capacity – Low pressure loss User-Friendly Design Simple in-line inspection and service. Easy maintenance Simple in-line conversion from sin TYPICAL PRODUCT APPLICATIONS Cֺֺomputerized Irrigation Systems Dֺֺrip Systems Sֺֺprinklers & Micro-Sprinklers Gֺֺreenhouses Irrigation Lֺֺow Pressure Systems Eֺֺnd-line Flushing (Distribution Line, Irrigation Machine) -“Flush-’n-Stop” Pֺֺroportional Pressure Reducing Nֺֺon-slam Closing (or moderate closing) Aֺֺctive Double Chambered (B) – full Powered Opening & Closing
