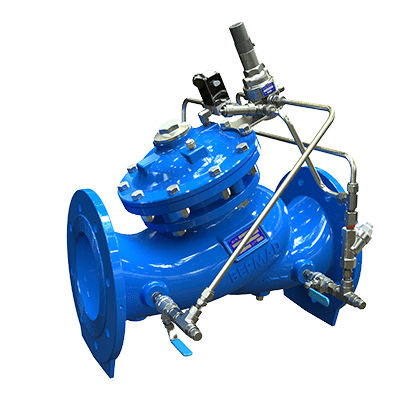

Globe valve WW-720-59

hydraulically-operatedfor controldouble

Hydraulically operated, pressure reducing control valve that reduces higher upstream pressure to lower constant downstream pressure, regardless of fluctuating demand or varying upstream pressure. The valve is equipped with a full opening eclectic override device. It reduces pressure loss across the valve to a minimum, in the event of a pressure drop below a minimum value. BERMAD 700 SIGMA EN/ES series valves are hydraulic, oblique pattern, globe valves with a raised seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The valves are available in the standard configuration or with an Independent Check Feature code “2S”. The 700 SIGMA EN/ES Valves operate under difficult operation conditions with minimal cavitation and noise. They meet size and dimensions requirements of various standards. PRODUCT FEATURES & BENEFITS Dֺesigned to – stand up to the toughest conditions Excellent anti-cavitation properties Wide flow range High stability and accuracy Drip tight sealing Dֺouble chamber design Moderated valve reaction Protected diaphragm Optional operation in very low pressure Moderated closing curve Fֺlexible design – Easy addition of features Oֺbstacle free flow pass Vֺ-Port Throttling Plug (Optional) – Very stable at low flow Cֺompatible with various standards Hֺigh quality materials Iֺn-line serviceable – Easy maintenance
