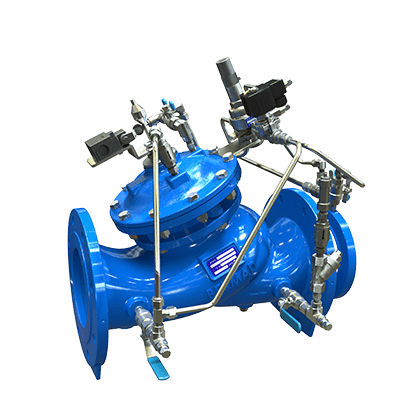

Diaphragm valve WW-747-U

electrichydraulically-operatedregulating

Hydraulically operated, active check, pump control valve with two independent functions:It opens fully or shuts off in response to electric signals, isolating the pump from the system during pump startup and shutdown, thereby preventing pipeline surges. While open, it maintains a pre-set maximum flow, preventing the pump from exceeding its designed flow or power consumption. BERMAD 700 SIGMA EN/ES series valves are hydraulic, oblique pattern, globe valves with a raised seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The valves are available in the standard configuration or with an Independent Check Feature code “2S”. The 700 SIGMA EN/ES Valves operate under difficult operation conditions with minimal cavitation and noise. They meet size and dimensions requirements of various standards. PRODUCT FEATURES & BENEFITS Dֺesigned to – stand up to the toughest conditions Excellent anti-cavitation properties Wide flow range High stability and accuracy Drip tight sealing Dֺouble chamber design Moderated valve reaction Protected diaphragm Optional operation in very low pressure Moderated closing curve Fֺlexible design – Easy addition of features Oֺbstacle free flow pass Vֺ-Port Throttling Plug (Optional) – Very stable at low flow Cֺompatible with various standards Hֺigh quality materials Iֺn-line serviceable – Easy maintenance
