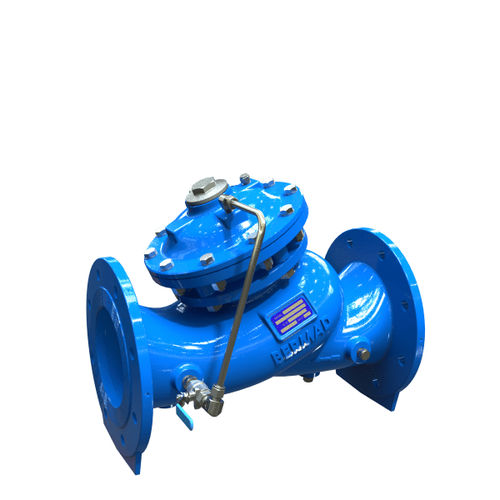

Diaphragm valve BC-720-PD-P

hydraulically-operatedfor controllevel control

Hydraulically operated, diaphragm actuated pressure reducing control valve that reduces a high upstream pressure to a lower downstream pressure at a fixed ratio. BERMAD 700 series valves are hydraulic, oblique pattern, globe valves with double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. PRODUCT FEATURES & BENEFITS High Quality Construction Materials – Reliable, resilient and long lasting operation Robust Design – Suitable for constant, intense operation Iֺֺn-Line Serviceable – Quick and easy maintenance and service Line Pressure Driven – Independent operation, no external power needed Unitized Actuator Assembly – Minimal downtime Hydrodynamic Body with Unobstructed Flow Path – Minimal noise and cavitation damage Protected Diaphragm – Minimizes chance of damage caused by debris in the pipeline Double Chamber Actuator – Rapid response to system changes with no hammer effect Adjustable Excessive Pressure Pilots – Easy field pressure setting and calibration TYPICAL PRODUCT APPLICATIONS Steps down pressure when pressure reduction must be done in two or more stages Decreases the potential for high noise levels and cavitation damage caused by high reduction ratios Reduces the differential pressure load across level control or pressure
