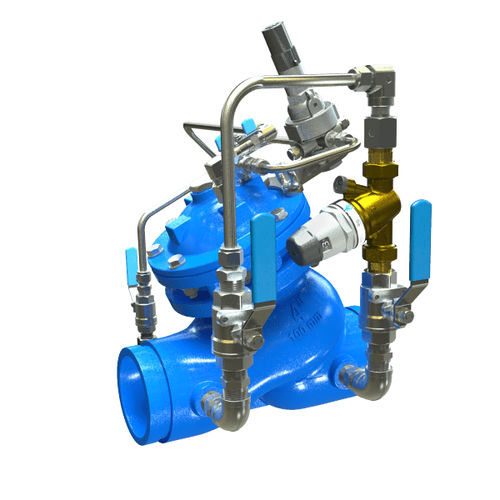

Diaphragm valve BC-720-2B-P

hydraulically-operatedfor controlpressure-reducing

Hydraulically operated, diaphragm actuated pressure reducing control valve that reduces a high upstream pressure to a lower constant downstream pressure, regardless of fluctuating demand or varying upstream pressure. the model includes an off peak flows by-pass regulated with a Direct Acting Pressure Reducing valve mounted on the valve body. BERMAD 700 series valves are hydraulic, oblique pattern, globe valves with double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. PRODUCT FEATURES & BENEFITS High Quality Construction Materials – Reliable, resilient and long lasting operation Robust Design – Suitable for constant, intense operation In-Line Serviceable – Quick and easy maintenance and service Line Pressure Driven – Independent operation, no external power needed Unitized Actuator Assembly – Minimal downtime Hydrodynamic Body with Unobstructed Flow Path – Minimal noise and cavitation damage Protected Diaphragm – Minimizes chance of damage caused by debris in the pipeline Two-way pilot and control loop that continuously sense the downstream pressure and immediately control the valve accordingly – stable, reliable and accurate pressure modulation in wide range of flow-rates and varying pressure. Pilot and control loop constructed from heavy duty environment friendly materials – long lasting and reliable operation. Integrated by-pass and V-Port Throttling Plug – stability in wide range of flows
