3-axis CNC milling machine FCN
4-axisverticalbridge

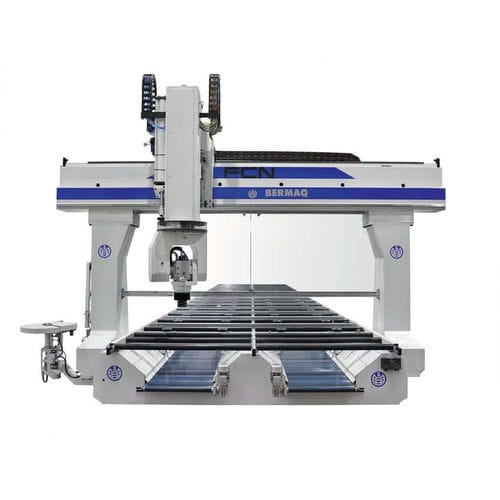

3-axis CNC milling machine - FCN - BERMAQ - 4-axis / vertical / bridge
3-axis CNC milling machine - FCN - BERMAQ - 4-axis / vertical / bridge
3-axis CNC milling machine - FCN - BERMAQ - 4-axis / vertical / bridge - image - 2
3-axis CNC milling machine - FCN - BERMAQ - 4-axis / vertical / bridge - image - 3
3-axis CNC milling machine - FCN - BERMAQ - 4-axis / vertical / bridge - image - 4
3-axis CNC milling machine - FCN - BERMAQ - 4-axis / vertical / bridge - image - 5
3-axis CNC milling machine - FCN - BERMAQ - 4-axis / vertical / bridge - image - 6
Add to favorites
Compare this product

Go to the BERMAQ website for more information

Characteristics

Number of axes
3-axis, 4-axis
Spindle orientation
vertical
Structure
bridge
Machined material
for wood
Spindle mount
HSK F63
Number of tool stations
12 tools
Applications
for panels, for the wood industry, for furniture, for windows and doors
Other characteristics
high-performance, modular
X travel

5,000 mm, 6,500 mm, 8,000 mm
(196.85 in, 255.91 in, 314.96 in)

Y travel

1,500 mm, 1,700 mm, 2,100 mm
(59.06 in, 66.93 in, 82.68 in)

Z travel

350 mm, 500 mm, 1,000 mm
(13.78 in, 19.69 in, 39.37 in)

Rotational speed

24,000 rpm
(150,796 rad.min-1)

Power

8 kW, 12 kW, 16 kW
(10.88 hp, 16.32 hp, 21.75 hp)

Description

Computerized Numerically Controlled machining centre (CNC) designed to satisfy the needs of the most demanding customers. It is a versatile, modular and heavy machine, which provides solutions to the wood sector. Its moving bridge structure, its dynamic high performance, modularity and power, launch this machine as the perfect solution for the machining of parts needing a high quality and precise finish. Technical specifications: Tool taper: ISO / HSK C axis for aggregates (optional) Working table with different dimensions: Vacuum pump 140 m3/h or 250 m3/h Table types: Phenolic resin table 1 or 2 working areas Siemens CNC Personalized machine according to the needs of our customers{/accordion} Applications: Kitchen and bathroom furniture Staircases Optional: Rotary axis maximum speed: C 17560º/min Motor cooling: air, liquid Numerical control: Siemens 828D / 840
