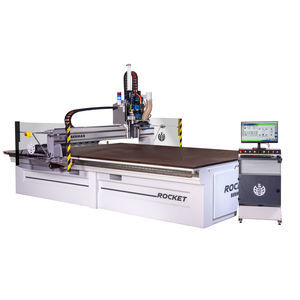

3-axis CNC machining center LINK5-axisverticalgantry
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Machined material
- for non-ferrous metals, for composites, for plastics
- Number of tool stations
- 40 tools
- Applications
- for the automobile industry, for molds, for the aerospace industry
- Other characteristics
- high-speed, compact, high-power, high-precision
- X travel
2,000 mm, 4,000 mm, 6,000 mm
(78.74 in, 157.48 in, 236.22 in)- Y travel
1,650 mm
(64.96 in)- Z travel
800 mm
(31.5 in)- Rotational speed
10,000 rpm, 36,000 rpm
(62,832 rad.min-1, 226,195 rad.min-1)- Power
8 kW
(10.88 hp)- Work feed X-axis
60 m/min
- Work feed Y-axis
60 m/min
- Work feed Z-axis
40 m/min
Description
New range of machining centres including 3 or 5 axes. Its structure is compact, powerful, versatile and easy to handle for the machining at high speed of non-ferrous materials (technical plastics, thermoformed plastics and their by-products). The machine has a strong moveable gantry that guarantees high speed working as well as a high precision and quality finishing.
Its casing provides complete insulation of moving parts which grants an enormous additional level of safety and environmental cleanliness (noise, fumes, etc). The table structure permits easier loading and unloading of the machined parts.
Technical specifications:
Machine equipped with 1 working area
Working area dimensions:
C Axis = +/- 200º (Harmonic Drive)
A Axis= +/-110º (Harmonic Drive)
Axes speed:
C Axis: 9 000º / min.
A Axis: 9 000º / min.
8 kW (10,86 HP) liquid-cooled motor
HSK / E40 tool tapers
Siemens CNC 840 D
Applications:
This machine is intended for the automotive, nautical, aerospace sectors and those industries specialised in moulds and patterns manufacturing.
Catalogs
No catalogs are available for this product.
