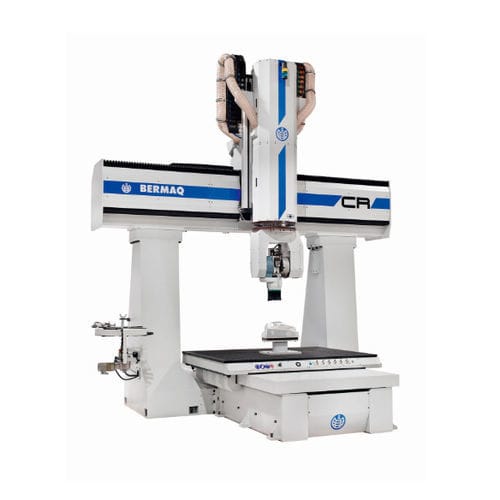

3-axis CNC milling machine CR5-axisverticalfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum, for non-ferrous metals, for wood, for resin
- Number of tool stations
- 12 tools
- Applications
- for the automobile industry, for the aeronautical industry
- Other characteristics
- high-speed, modular
- X travel
Max.: 4,000 mm
(157.48 in)Min.: 2,000 mm
(78.74 in)- Y travel
Max.: 4,000 mm
(157.48 in)Min.: 1,500 mm
(59.06 in)- Z travel
800 mm, 1,250 mm
(31.5 in, 49.21 in)- Rotational speed
20,000 rpm
(125,664 rad.min-1)- Power
8 kW, 12 kW, 16 kW
(10.88 hp, 16.32 hp, 21.75 hp)- Work feed X-axis
50,000 mm/min
(33 in/s)- Work feed Y-axis
50,000 mm/min
(33 in/s)- Work feed Z-axis
20,000 mm/min
(13 in/s)
Description
The CR milling machine has been specially designed for the machining at high speed of non-ferrous materials such as wood, aluminium, polystyrene and resin. It is a robust and precise machine ideal for the production of patterns and moulds. Its modular structure allows carrying out multiple configurations of 1 or 2 tables and 1 or 2 simultaneous heads, which makes it the perfect machine to execute high productions. Ideal for 5 axes continuous working.
Technical specifications:
Machine prepared to be equipped with 3 or 5 controlled axes
Milling head for composites
Choice of automatic or manual tool change
HSK tool taper
Vacuum pump 145 m3/h or 250 m3/h
Automatic lubrication
Machine personalisation according to our customers’ needs
Applications:
Pattern industry
Handmade works
Wood modelling works
Nautical Industry
Optional:
Rotary axis: C +/- 200º
Pendulum axis: A +/- 110º
Rotary axis maximum speed: C 12 600º/min
Pendulum axis maximum speed: C 12 600º/min
Motor cooling: air, liquid
Numerical control: Siemens 840D
