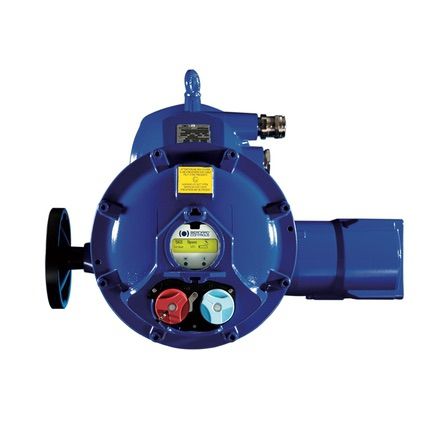

Motorized valve actuator SQX

electromechanicalquarter-turnIP68

Explosionproof quarter-turn SQX actuators are certified for use in explosive atmosphere according to main international standards, adaptable to the specifications of engineering companies and have been designed to offer increased security and reliability to your installation. COMPLIANCE WITH INTERNATIONAL EXPLOSION-PROOF STANDARDS: ATEX, INMETRO, IEC-EX, EAC-EX, NEMA 7 & 9... TYPE OF CONTROLS: Electromechanical SWITCH Hardwired Smart INTELLI+® (v2) SIL2 BC DUTY & MODULATING CLASSIFICATION: On-Off: Class A+ Inching / Positioning: Class B+ Modulating: Class III ENVIRONMENT: IP 68 / C3 UP TO C5-M Asynchronous motor with high starting torque & S4 Service duty Gears are self-locking Non-rotative declutch-free handwheel with electric motor priority INTELLI+® integrated control available: advanced control solution for your critical applications Double sealing Partial stroke test (PST) included Programmable timer Separated control box & LCS available Wide range of fieldbus available SIL certification as an option
