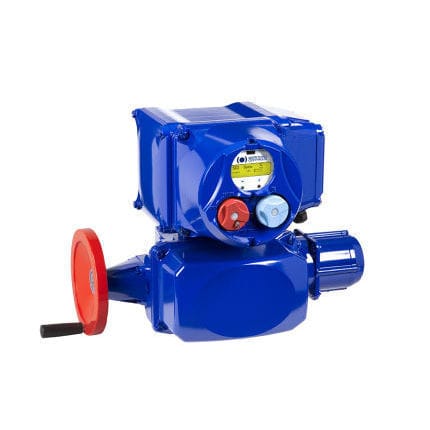

Linear actuator

electricintegratedquarter-turn

BERNARD CONTROLS Class II Continuous modulating actuators have been designed thanks to decades of return on experience for reliable and efficient modulating with all types of modulating valves (quarter turn, multi-turn or linear). ADAPTATION TO ALL MODULATING VALVES: QUARTER-TURN, MULTI-TURN, LINEAR TYPE OF CONTROLS: Electromechanical SWITCH Integrated INTELLI+®(v2) BC DUTY & MODULATING CLASSIFICATION: Continuous modulating: Class II conform to EN15714-2 Class D ENVIRONMENT: IP 68 / C3 UP TO C5-M BERNARD CONTROLS’ PROVEN EXPERTISE FOR CONTINUOUS MODULATING EN15714-2 Standard defines a duty classification for an electric actuator to operate the valve: On-Off, Inching/Positioning, Modulating and Continuous modulating. This duty classification defines basic design requirements. However, in order to define practically and precisely the appropriate solution corresponding to your own process requirements, you need to qualify each duty type with key criteria. Modulating applications require specific expertise to define the most appropriate solution. Duty PERFORMANCE is the main criterion to fully address process requirements, but needs to be specified and completed with additional performance criteria, notably RESOLUTION. For many years, BERNARD CONTROLS has been a leader in these applications. Our modulating classification is now well-know from our customers and has, in fact, inspired the European Norm EN15714-2. Therefore, BERNARD CONTROLS chooses to set key additional performance criteria – RESOLUTION / Dead band / Response Time / Linearity – to determine end-users’ solution.
