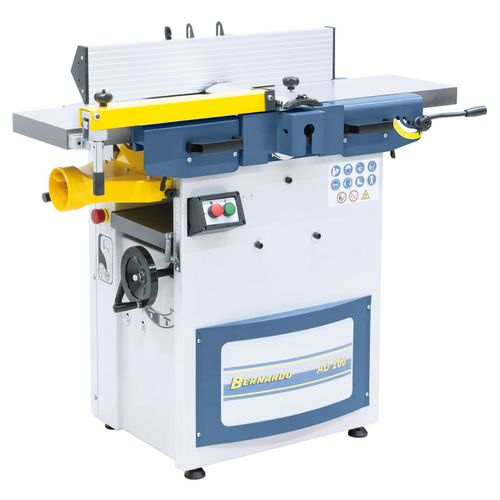

Planer-thicknesser surface planer AD 260 - 230 V

for wood

Introducing the AD 260 model, positioned for the professional home user with an optimal price-to-performance ratio. It meets demands such as stability, high performance and safety. Another advantage is the short conversion time from planing to thicknessing due to the simultaneous tilting of the planing tables. Properties Planing tables tilt to the back of the machine to keep space requirements to a minimum Precisely bedded, smooth running 3-knife cutterblock guarantees optimal results Integrated, tiltable dust hood, extraction outlet 100 mm Simultaneous tilting of planing tables to achieve maximum comfort Thicknessing table feed can be switched off when planing Hard-anodized aluminium planing fence, tiltable from 90° to 45° Thicknessing table with central column and support allow precise planing Torsion-free, cast iron planing tables guarantees best results Numerous safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start,... Technical specifications Planing width 250 mm Table length 1090 mm Table height 835 mm Shaft rotation speed 4000 rpm Cutter knives 3 pcs. Planer shaft diameter 75 mm Planer fence 715 x 130 mm Fence tiltable 90° to 45° Max. cutting depth 3 mm Table length 600 mm Working width 250 mm Working thickness, min./max. 5 - 185 mm Max. cutting depth 2,5 mm Feed speed 4,8 m/min Dust extraction outlet 100 mm Motor power output S1 100% 2,0 kW (2,7 HP) Motor power input S6 40% 2,8 kW (3,8 HP) Voltage 230 V Machine dimension (L x W x H) 1150 x 800 x 1000 mm Weight approx. 173 kg Standard accessories Cutter knives in HSS-quality Knife gauge
