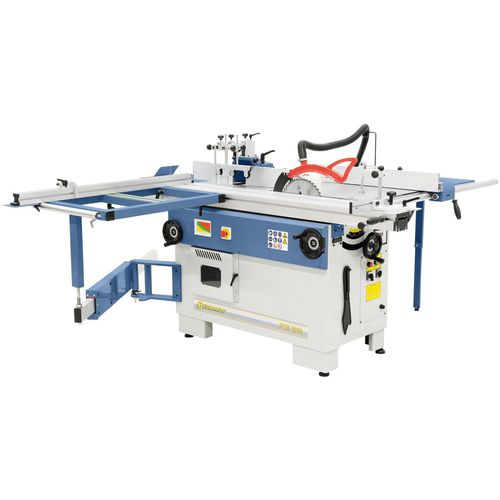

Sliding table saw-spindle molder PSM 2000 - 400 V

for wood

The PSM-series sliding table saw and spindle moulders are available with a table length of 2000 or 2600 mm. Part of the standard equipment are 2 motors, a sawblade (315 mm) for cutting height up to 315 mm and a scoring unit for smooth processing of coated materials. The wide range of standard equipment allow these models to offer an extraordinary performance and a maximum number of applications. Properties Square table with roller for convenient handling of larger workpieces Telescopic-longitudinal fence comes complete with end stop feat. fine adjustment Quick and easy readout of spindle speed on digital display Solid moulding fence features finely adjustable aluminium fence rails Large, grey cast-iron moulder unit, tilts from 0° to -45° Important feature: Sawblade 315 mm can be used when scoring unit is mounted Machine body consists of torsion-free combination of steel and grey cast iron Solid square table allows processing of large, heavy panels without additional support Technical specifications Circular saw Table size 1300 x 380 mm Table height 970 mm Table extension 350 x 310 mm Table enlargement 800 x 880 mm Square table with roll 940 x 580 mm Sliding table 2000 x 270 mm Cutting length 2000 mm Standard accessories End stop Moulding fence Protective and pressing device Table extension and enlargement Extractable telescopic fence Scoring sawblade 90 x 20 x 3 mm / 13T Protective cover with dust extraction outlet and tube Mitre fence with eccentric holder End stop with fine adjustment Square table with roller Carbide sawblade 315 x 3,0 x 30 mm / 40T Digital speed indication of moulding spindle Spindle with left and tright turning Push stick Tools
