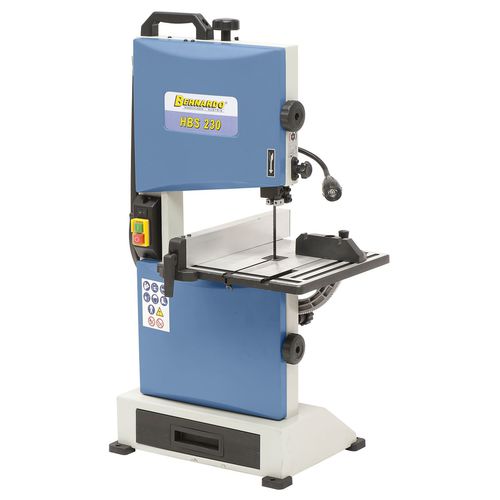

Band saw HBS 230

verticalwoodautomatic

The wood bandsaws of the HBS-series afford a generous cutting capacity on smallest space. The flywheels are serially equipped with a special rubbercoating whereby a long life-span of the bandsaw blades are warranted. Through the optimale price to performance ratio and efficiency these machines are ideal for the do-it-yourselfer. Properties Aluminium die casting flywheels with special rubber coating for a long life span of the bandsaw blades Buckling resistant, solid sheet metal construction Working table out of aluminium with tilting device (up to 45°) Serially with precision roller guide over and under the table Including rip fence and both-sided tiltable mitre fence Solid machine stand out of sheet metal for a safe stand at work and ingrated chip tray Micro-V-belt drive for an optimal power transmission Technical specifications Cutting width 225 mm Cutting height 95 mm Cutting speed 635 m/min Table size 300 x 300 mm Table height 405 mm Tilting table 0° to 45° Dust extrcation outlet 50 mm Motor power output S1 100% 0,30 kW (0,40 HP) Motor power input S6 40% 0,42 kW (0,57 HP) Voltage 230 V Machine dimension (W x D x H) 480 x 370 x 840 mm Weight approx. 21 kg Standard accessories Bandsaw blade Mitre fence Ball-bedded precision blade guiding LED working light Push stick
