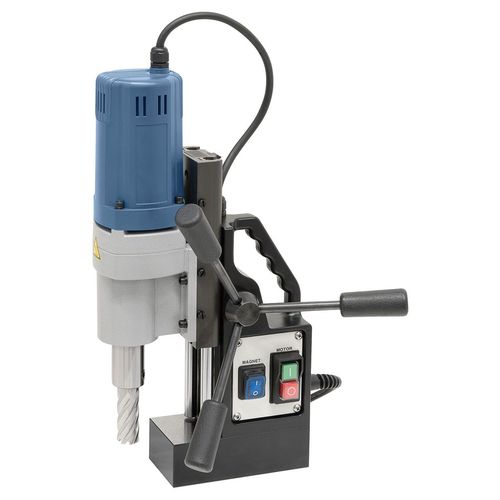

Electric core drilling machine MD 4055

magnetic

The MD 4055 magnetic core drilling machine is suitable for core drilling from 12 – 40 mm. Its low weight (12.7 kg) makes this model very mobile and great for vertical or over head operation. Properties Stepless, drill head height adjustment, ideal when using long drill bits Automatic internal lubrication – coolant spreads direct on core drill Tool holder designed for core drills with 19 mm weldon shaft Round rod guiding ensures accurate drill head travel High-quality component ensure long life span Solid drill guide ensures optimal results Powerful motor, designed for continuous operation Professional machine, ideal for transport Technical specifications Core drill max. drill depth 50 mm Twist drill max. Ø 13 mm Travel of drill head max. 135 mm Arbor weldon shank 19 mm Distance weldon shank / base max. 140 mm Magnetic adhesion 10500 N Dimension magnetic base (L x W x H) 159 x 79 x 48 mm Motor power 1150 W Voltage 230 V Machine dimension (W x D x H) 240 x 255 x 500 mm Weight approx. 12,7 kg Standard accessories Safety chain Plastic container Coolant tank User manual Tools
