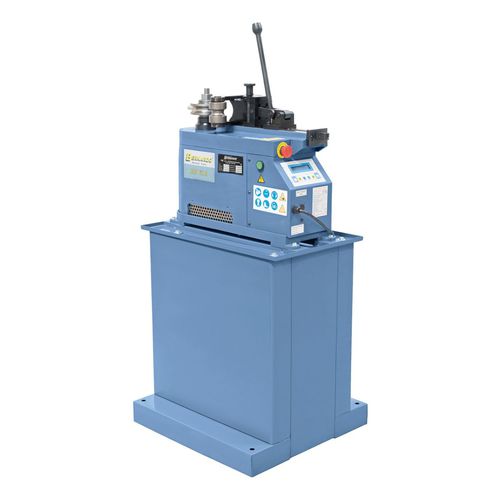

Electric bending machine BM 60 A

tubeautomaticNC

Including NC-control for bending angle adjustment, memory for up to 50 programs Standard with quick adjustment of the counter roller holder or the optional bending shoe For cold bending of pipes out of steel, stainless steel, aluminium, copper, brass etc. Bending formers for various pipe diameter optional availble For optimum bending results at wall thicknesses of up to 2.5 mm, a bending shoe is available as an option Optimized geometry of the bending formers, thus very short, straight pipe end After the end of the program automatic reset to the starting position Technical specifications Bending capacity: Hydraulic pipe S235JR 54 x 4 mm Aluminium pipe 54 x 5 mm Steel pipe 54 x 2 mm Staindless steel pipe AISI 304/316 42 x 3 mm Copper or brass pipe 54 x 4 mm Gas pipe for pipelines 1 1/2“ Standard accessories NC-control Support for counter rolls Quick adjustment Two-hand safety operation
