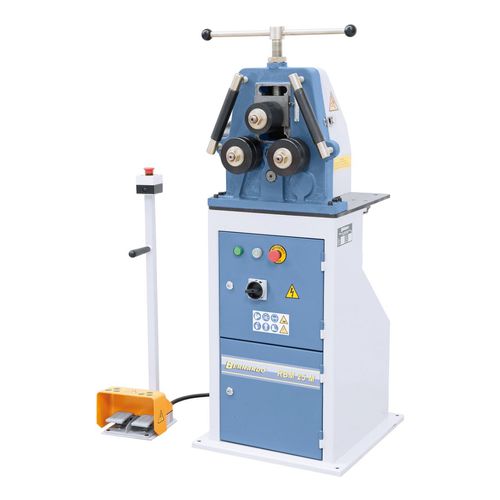

Profile bending machine RBM 25 Mmotorizedsteel tubehorizontal
Add to favorites
Compare this product
Characteristics
- Operation
- motorized
- Product handled
- steel tube, profile
- Displacement
- horizontal, vertical
- Control
- automatic
- Overall length
645 mm
(25 in)- Overall width
635 mm
(25 in)- Total height
1,380 mm
(54 in)- Weight
230 kg
(507 lb)- Voltage
400 V
- Total power
1.1 kW
(1.5 hp)
Description
Including standard rolls for bending square materials
The upper roll is adjusted via an easily visible mm scale
Standard with foot pedal to control right and left rotation
Bending rolls hardened and ground
Technical specifications
Shaft diameter
30 mm
Upper roll
98 mm
Lower rolls
118 mm
Bending speed
2,5 m/min
Standard accessories
Standard roll set
Lateral guide rolls
Foot pedal with emergency stop
