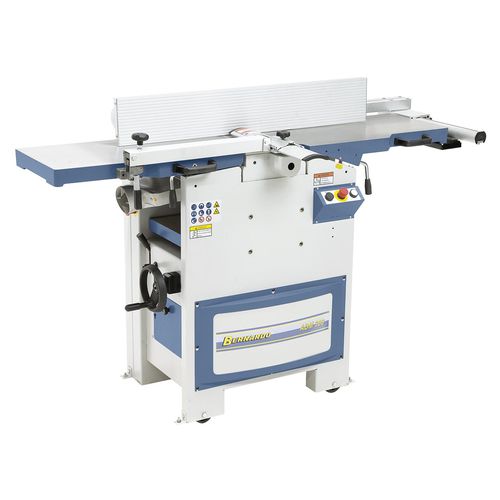

Planer-thicknesser surface planer ADM 300

for wood

These machines offer the ideal price-performance ratio for the well-advanced amateur. These machines meet all the users‘ requirements with features like a high level of stability and quick conversion while providing large power resources. Properties Folding planing tables for quick conversion to thicknessing Integrated tiltable dust hood, extraction outlet 100 mm Both planing tables feature fi ne adjustment and noise absorbing table lips Maintenance-free 4-knife cutterblock with 18% quality HSS- knives Spiral toothed infeed roller for safe and consistent workpiece infeed Thicknessing table with central column and support for a high level of accuracy Planing fence positioned to side of machine, allowing machine to be flush with wall Serially equipped with knife gauge to ensure precise adjustment of cutter knives Powerful, high performance motor Planer Planing width 305 mm Table length 1510 mm Table height 915 mm Shaft rotation speed 5500 rpm Cutter knives 4 pcs. Planer shaft diameter 78 mm Planer fence 1105 x 155 mm Fence tiltable 90° to 45° Max. cutting depth 3 mm Table length 585 mm Working width 300 mm Working thickness, min./max. 3 - 220 mm Max. cutting depth 3 mm Feed speed 6,6 m/min Dust extraction outlet 100 mm Motor power output S1 100% 3,0 kW (4,0 HP) Motor power input S6 40% 4,2 kW (5,7 HP) Voltage 400 V Machine dimension (L x W x H) 1700 x 790 x 1080 mm Weight approx. 280 kg Standard accessories Cutter knives in HSS-quality Knife gauge Integrated carriage Push handle
