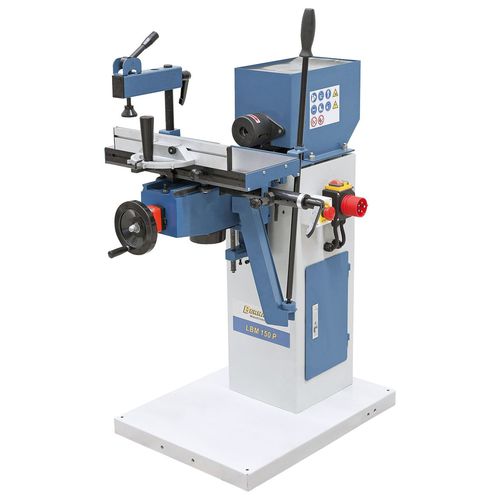

Wood mortising machine LBM 150 P - 230 V

The LBM 150 P is a low cost mortising machine features right and left turning, a mitre fence as well as a 4-size rotor group. The small but compact construction makes this model ideal for craftsmen. Properties Complete with Westcott drill chuck 0 - 16 mm with cover Eccentric holder for secure fastening of workpiece comes standard Ergonomically positioned lever allows for one handed operation of work table Motor protective switch in accordance with IP 54 standards with undervoltage release Precise roller guiding ensure accurate movement of work table Powerful motor guarantees optimal performance Multiple holes are easy to achieve with the rotor group (part of standard equipment) Technical specifications Table size 500 x 200 mm Table height 760 - 900 mm Max. drill depth 90° 150 mm Drill width 300 mm Height adjustment 140 mm Speed 2850 rpm Westcott drill chuck 0 - 16 mm Dust extraction outlet 100 mm Motor power output S1 100% 2,2 kW (3,0 HP) Motor power input S6 40% 3,0 kW (4,0 HP) Voltage 230 V Machine dimension (W x D x H) 770 x 920 x 1245 mm Weight approx. 102 kg Standard accessories 4-size rotor group with grid spacing 16 / 20 / 22 / 25 mm Westcott drill chuck 0 - 16 mm 1 pc. eccentric holder Mitre fence with guide Left and right turning Digital readout for table height adjustment Machine base with tool shelf
