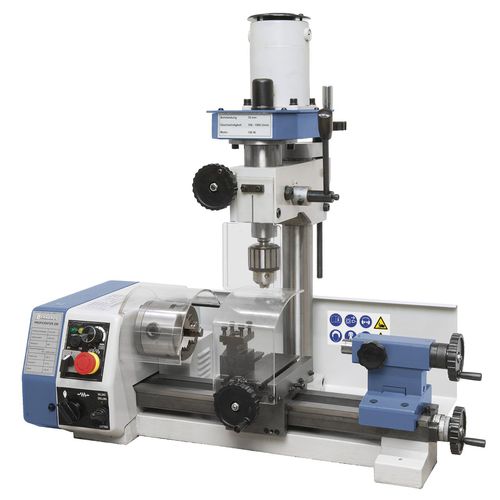

CNC lathe Proficenter 250

horizontaluniversalcompact

The Proficenter 250 mini lathe comes complete with a milling attachment. Its compact construction ensures a smooth run and guarantees precise results, making this model particularly attractive for ambitious model-makers. Properties Electronic, stepless adjustable drive High-quality ball bearings guarantee high concentricity User-friendly arranged control elements Straightforward speed change Inductive hardened, polished machine bed Leadscrew features automatic feed Milling attachment includes precise fine adjustment Spindle with clamp device ensures accurate results Technical specifications Distance between centers 250 mm Center height 75 mm Spindle bore 10 mm Metric thread* (5) 0,5 - 1,25 mm Inch thread* (5) 16 - 24 threads/1“ Travel of tailstock sleeve 25 mm Taper of tailstock sleeve MT 1 Drilling capacity in steel 10 mm Face mill capacity max. 20 mm Distance spindle to column 105 mm Spindle taper MT 2 Spindle stroke 30 mm Mill head height adjustable 130 mm Standard accessories 3-jaw chuck 80 mm Chuck cover 2-way tool post holder Live center MT 1 Drill chuck 1 - 10 mm / B 12 Tools
