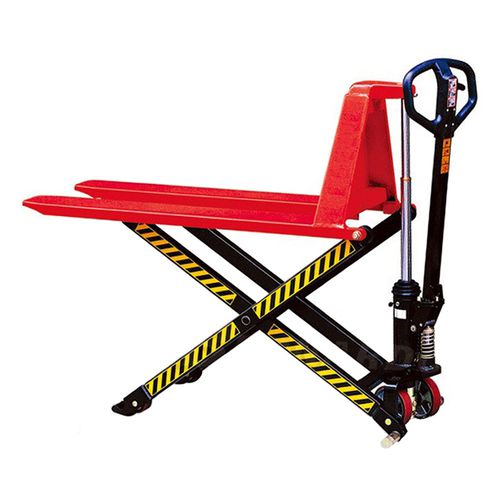

Hydraulic pallet truck SHW
handautomatedfor industrial applications

hydraulic pallet truck
hydraulic pallet truck
hydraulic pallet truck
hydraulic pallet truck
Add to favorites
Compare this product


Characteristics

Operation
hand, hydraulic
Operator
automated
Other characteristics
scissor, for industrial applications, for lifting, quick-lift
Load

1,000 kg
(2,204.62 lb)

Lifting height

Max.: 800 mm
(31.5 in)

Min.: 85 mm
(3.3 in)

Fork length

1,140 mm
(44.88 in)

Fork width

520 mm
(20.5 in)

Weight

105 kg
(231.49 lb)

Description

Automatic descendng speed control by a uniquely hydraulic valve, the decending speed always keeps same regardless the truck with or without load. It will prevent cargo damage from fast descending Front support legs and adjustable stabilizers extended to the floor automatically when the forks reach a height of 420 mm, to ensure maximum stability and optimum braking Ergonomic warm handle offers you simple and comfortable operation Heavy duty design: 4 mm steel plate fork and larger lift piston ensure the truck to reach rated capacity Conforms to EN1757-4 Technical specifications Dimension C 600 mm E 530 mm H 1250 mm
