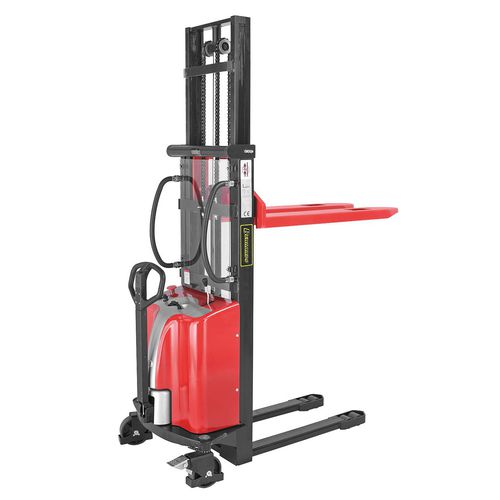

Semi-electric stacker truck EHS 1000 - 1,612 Vtransport
Add to favorites
Compare this product
Characteristics
- Energy
- semi-electric
- Voltage
- 12 V
- Applications
- transport
- Carrying capacity
1,000 kg
(2,204.6 lb)- Lifting height
Max.: 1,600 mm
(62.99 in)Min.: 85 mm
(3.35 in)- Height of mast when lowered
1,980 mm
(78 in)- Overall width
570 mm
(22.4 in)- Fork width
180 mm
(7.1 in)- Fork length
1,140 mm
(44.88 in)- Turning circle radius
1,280 mm
(50.4 in)- Motor power lifting
1.5 kW
(2.039 hp)- Lifting speed
90 mm/s
- Weight
410 kg
(903.9 lb)
Description
Load centre distance
600 mm
Fork height
60 mm
Distance between forks
210 mm
Lowering speed with load / without load
120 / 100 mm/sec.
Sterring roller dimension
Ø 180 x 50 mm
Load roller dimension
Ø 74 x 70 mm
Wheelbase
1160 mm
Length
1720 mm
Width
780 mm
