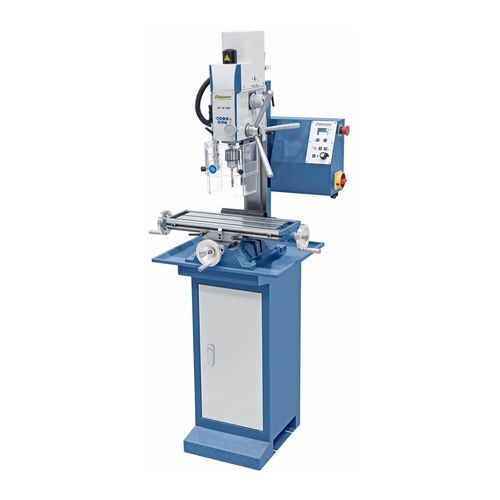

CNC drilling and milling machine KF 18 Top

column typefor steelvariable speed

The KF 18 Top drilling and milling machine comes complete with a high quality direct current motor. Consequently, there are many advantages such as the high torque at low speed and the almost constant speed during processing. This model is predominantly used among professionals, in model-making as well as for training purposes. Properties + High speed range from 50 - 3000 rpm, 2-step gear box ensures optimal transmission + Variable speed adjustment, stepless speed change for ideal adjustment to the workpiece + Oversize cross table features T-slots, high grade surface finish + Many possible applications, such as groove milling, face milling, reboring, etc. + Direct current motor for ideal torque at lower speed + Mill head tilts to both sides allowing angular boring, milling of bevels, etc. + Incl. EMC filter, protect electrical equipment against electromagnetic interferences + Left and right rotation for thread cutting comes standard + Taper roller bearing guarantees high spindle concentricity (≤ 0,015 mm) + Dovetail guiding in x-, y- and z-axis, adjustable via gibs + Spindle adjustment via handle, fine feed via handwheel Standard accessories + Drill chuck 3 - 16 mm / B 16 + Drill chuck arbor MT 2 / B 16 + Drawbar M 10 + LED machine light + Digital speed indicator + Digital spindle stroke indicator + EMC filter according to CE standard + Height adjustable protective cover + Energy chain + Tools
