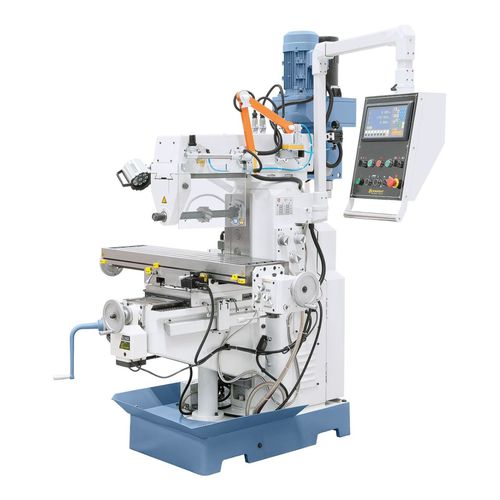

3-axis milling machine UWF 90

universalautomatic

The UWF 90 universal milling machine is serially equipped with an x- and y-axis feed. The table height (z-axis) is easily adjusted by the positioning motor. Due to the various areas of application and the comprehensive standard accessories, the machine is ideal for mechanical workshops, repair shops, engine construction etc. Properties Complete with automatic table feed in x- and y-axis including rapid feed Surface treated, large table includes T-slots Heavy cast-iron machine stand eliminates vibrations Dovetail guiding in all three axis – adjustable by gibs Positioning motor for z–axis comes standard Wide speed and feed range Ideal for single and small-series production Tapered roller bearings ensure high concentricity Left and right rotation allows thread cutting Technical specifications Table size 1270 x 280 mm Spindle taper ISO 40 Spindle stroke 125 mm Distance spindle to table 35 - 350 mm Distance spindle to column 170 - 750 mm Table tiltable -45° to +45° Spindle head tilting range -90° to +90° Feed range longitudinal (8) 32 - 700 mm/min Rapid feed z-axis 660 mm/min T-slot size 14 mm Machine dimension (W x D x H) 1750 x 1500 x 2200 mm Weight approx. 1300 kg Standard accessories Drawbar M 16 LED machine light Coolant device Automatic table feed in x- and y-axis Positioning motor for z-axis Adapter ISO 40 / B 18, ISO 40 / MT 3 Morse taper drill sleeve MT 3/2 Long milling arbor 27 mm Horizontal counter bearing Adjustable protective device Protective cover for horizontal milling Tools
