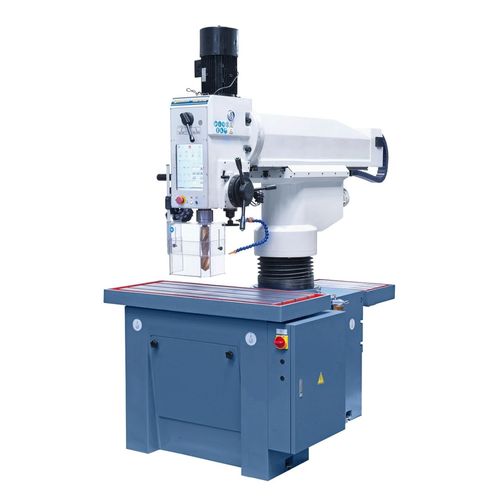

CNC drilling machine SRB 50 NC

verticalcolumn typeradial

The SRB 50 NC is a new addition to our radial drilling machines and features the biggest dimensions. The special features of this model are the operation via a large touchscreen and the spindle feed by a servo motor. Properties Innovative design and construction allows numerous options for clamping and processing Electromotive height adjustment of drill head without changing the drill position, ideal for drilling deep holes Large table size (1200 x 500 mm) to allow simultaneous clamping of several workpieces Quick adjustment of drill head to each workpiece, hydraulic clamping Comes complete with electronic, stepless speed adjustment and 2 gear settings Reinforced column guarantees rigidity of drill arm Solid construction guarantees processing free from vibrations The quill feed takes place by a high quality servo motor Complete with stepless speed, set speed is visible on digital display Technical specifications Thread cutting max. M36 Distance spindle to column min./max. 360 - 950 mm Vertical movement of the support 400 mm Drill head tiltable -90° to +90° Spindle stroke 240 mm Morse taper MT 4 Feed range 1 - 300 mm/min Distance spindle to table surface 390 - 780 mm Table size 1200 x 500 mm T-slot size 18 mm Column diameter 240 mm Machine dimension (W x D x H) 1250 x 2500 x 2800 mm Standard accessories Electromagnetic spindle feed Touchscreen Servomotor for spindle feed Frequency inverter Electromotive drill head adjustment Initial filling with Shell Tellus 46 Morse taper drill sleeve MT 4 / 3, 4 / 2, 3 / 1 Thread cutting device Coolant device LED machine light Height adjustable protective cover Tools
