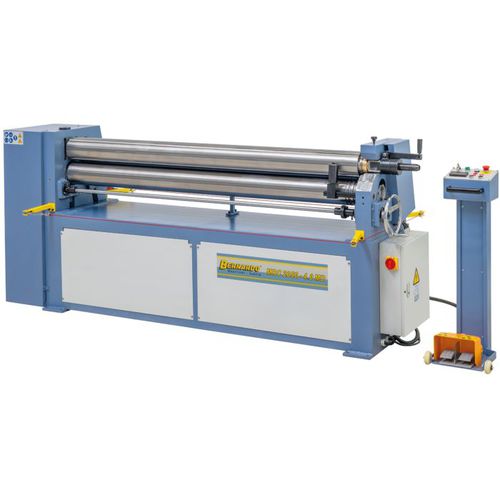

Motorized bending machine MRC 2550 - 6,5 GMDsheet metalhorizontalautomatic
Add to favorites
Compare this product
Characteristics
- Operation
- motorized
- Product handled
- sheet metal
- Displacement
- horizontal
- Control
- automatic
- Other characteristics
- rolling
- Roller diameter
210 mm
(8 in)- Overall length
1,000 mm
(39 in)- Overall width
4,000 mm
(157 in)- Total height
1,150 mm
(45 in)- Weight
3,720 kg
(8,201 lb)- Total power
5.5 kW
(7.5 hp)
Description
Swivelling upper roller for easy removal of the finished workpiece
Conical bending device included
Bottrom roller manually adjustable by handwheel
Fixed upper roller, adjustable bottom and back roller
Mobil foot pedal for left and right turning and emergency stop function
For rolling of steel sheet, stainless steel and aluminum
Bending rolls made of high quality steel (GMD models additionally hardened)
Technical specifications
Roll length
2500 mm
Sheet thickness max. (400 N / mm2)
6,5 mm
Pre-bending
6,0 mm
Min. bending diameter
230 mm
Roll speed
7 U/rpm
Motor power back roll
2,2 kW
Standard accessories
Foot pedal with emergency stop
Conical bending device
Motorized adustment of the back roll
Digital readout
Safety device via rope
Bottom and back roller with wire insert groove
Hardened bending rolls
