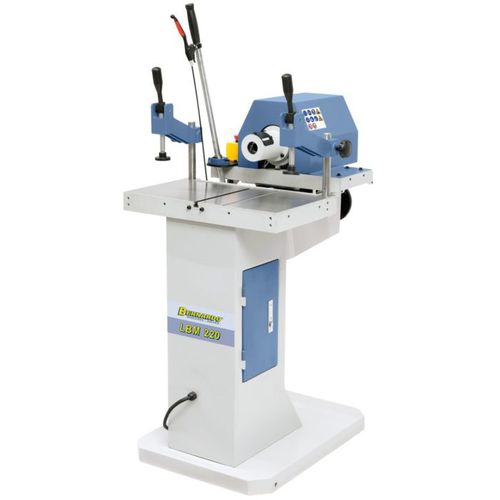

Wood mortising machine LBM 220

The LBM 220 mortising machine features a torsion-free steel construction and a firmly attached, surface treated, amply sized grey cast-iron table. The serially table extension and enlargement allow for large workpieces to be processed. Properties Equipped with 2 pcs. eccentric holder and mitre fence Advantage of drill unit travel: combined with the serially table extension, longer, large workpieces such as doors, can be processed effortlessly One hand lever allows for easy adjustment of cross support Westcott drill chuck 0 - 20 mm with protective cover comes standard Includes mortising chisel collet for accurate mortising of rectangular holes (eg. tenon joints) Handwheel allows for convenient height adjustment of drill unit Rigid steel construction eliminates vibrations Powerful motor ensures optimal performance Large grey cast-iron table features treated surface Equipped with 2 speed settings plus right and left turning device Rotor group with grid spacing 16 / 20 / 22 / 25 mm comes standard, ideal for multiple hole drilling Technical specifications Table size 570 x 300 mm Table enlargement (optional) 2x 600 x 260 mm Table extension (optional) 300 x 600 mm Table height 870 mm Max. drill depth 155 mm Drill width 300 mm Height adjustment 160 mm Speed 1400 / 2800 rpm Westcott drill chuck 0 - 20 mm Motor power output S1 100% 3,0 kW (4,0 HP) Standard accessories Table enlargement and extension 4-size rotor group with grid spacing 16 / 20 / 22 / 25 mm Westcott drill chuck 0 - 20 mm 1 pc. mortising chisel 9,50 mm 2 pcs. eccentric holder Mitre fence with guide Left and right turning 4 mortising chisel collets (19, 20, 28, 30 mm shaft) Machine base with tool shelf
