Flexible feeder 4080 series
automaticroboticfor packaging

Flexible feeder - 4080 series - Bernhard Upmann Verpackungsmaschinen GmbH & Co. KG - automatic / robotic / for packaging

Flexible feeder - 4080 series - Bernhard Upmann Verpackungsmaschinen GmbH & Co. KG - automatic / robotic / for packaging - image - 2

Add to favorites

Compare this product

Characteristics

Type: flexible
Operating mode: automatic, robotic
Product applications: for packaging, carton

Description

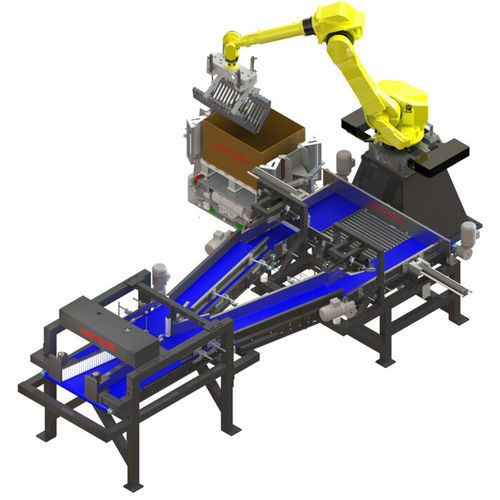

Upmatic Robot Feeder TYPE 4080 The flexible robot for repackaging in boxes and cartons! The six-axis robot packs many types of packaging into different containers with the gripper specially developed by Upmann. Machine description Individually adaptable insertion lines possible Various containers such as Europool, Düsseldorfer, Dynamic-shipper, IFCO, carton and many more possible Integrated jogging station(s) Freely adjustable packing patterns Technical data Packing capacity: up to 90 ppm Min. carton size: 800 x 600 x 450 mm Max. Carton size: 800 x 600 x 1000 mm Euro Pool or IFCO boxes possible Rated voltage: 230 / 400 V at 50 / 60 Hz Power consumption: 7.0 kW Air pressure: 6 bar unlubricated Air consumption per cycle: approx. 50.0 l Accessories Customisable packing patterns Labelling devices Vibrator with optoelectronic monitoring
