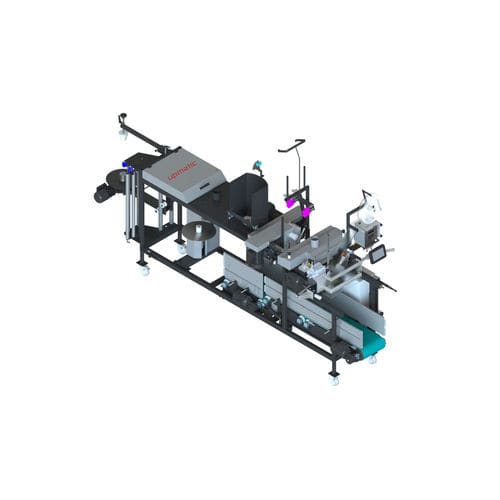

Upmatic Mains Machine TYPE 1352-CL
One machine with two capping techniques
The upmatic 1352-CL is the machine that is able to sew or clip the filled Raschel bags.
Machine description
Optional with industrial sewing machine
Optional for clip function with printing and labelling
Coupling to all common weighing machines
Machine model
Available in lacquered, galvanised and stainless steel.
1352CL
Technical data
Packing capacity: up to 25 ppm
Min. bag size: 290 + 85 x 360
Max. Bag size: 520 + 85 x 800 (corresponds to approx. 2.5 - 25 kg potatoes)
Rated voltage: 230 / 400 V at 50 / 60 Hz
Power consumption: 3.0 kW
Air pressure: 6 bar unlubricated
Air consumption per cycle: approx. 5.2 l
Water requirement: -
Accessories
Thermal transfer printer
Label dispenser
Filling monitoring
Vibration drive in the support belt
