Spray dryer WT series

for vegetablesmodularhigh-performance

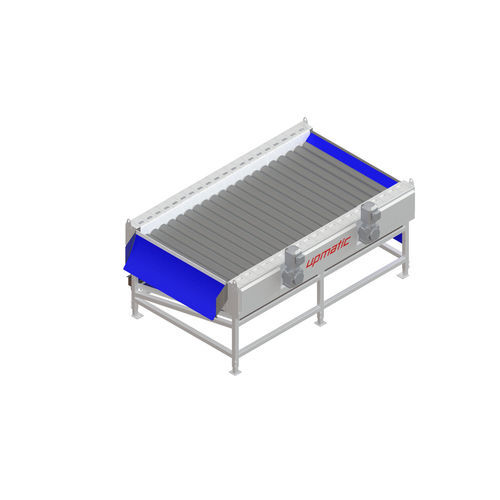

Upmatic roller dryer TYPE WT-1500-20 Modular design - fast maintenance The roller dryer consists of a stable frame with modular slide-in modules in which the double roller pairs and drive elements are mounted. Machine description Due to the modular design, the first rollers can be designed as brush rollers with spray register. The low-wear and high-performance felt cloths ensure a high degree of dryness and low maintenance costs. Machine modell Version available in lacquered,galvanised. Technical data Dryer capacity: up to 30 t/h Rated voltage: 230 / 400 V at 50 / 60 Hz Power consumption: 2.2 kW Length 3,200 mm Width: 1.500 mm Weight of the machine: 1.800 kg Accessories Automatic residue emptying Brush rollers Spray register
