IP67 limit switch MN78

IP66robustmechanical

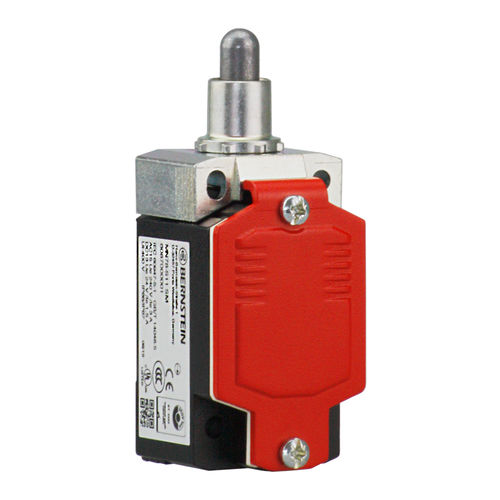

Position switch MN78 The position switches MN78 are the successful answer to an increased demand of the market. The contacts of these new series are specially designed for switching low currents. The MN78 is a completely metal version of the position switch, which scores points for reliably fulfilling its task even in harsh environments, outdoors or under high mechanical stress. • High reliability at low currents (1 mA / 24 VDC) • Up to 4 contacts • Enclosure: Die-cast aluminium • Cover: Aluminium • Easy turning (8 x 45° ) and changing of the actuators without a tool • Standard switch and standard actuator according to DIN EN 50041 • Protection class IP66 and IP67 according to EN 60529
