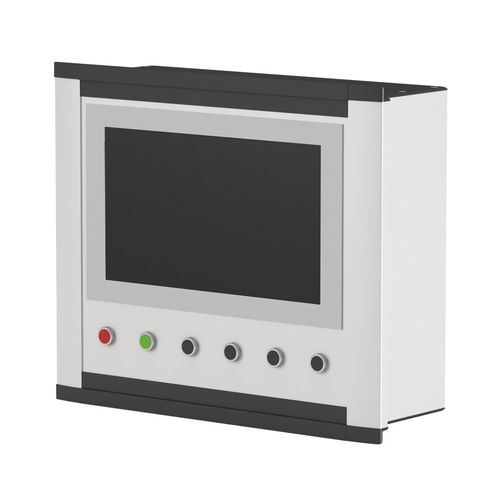

Control enclosure CC-4000 series

wall-mountpanel-mountmodular

Operating Enclosure CC-4000 / CC-4000 SL The CC-4000 / CC-4000 SL are modular aluminium control enclosure systems. With their outstanding technical features, the enclosures simply and efficiently encapsulate industrial controllers and operator control panels for centralised and decentralised automation in production processes. - Customised solutions to your specifications - Simple and modern industrial design - Freely selectable width and height (max. 800 x 800 mm) - Depths from 52 mm up to max. 646 mm - High-quality extruded aluminium sections (naturally anodised) - Coloured areas that emphasize the design - Optimum heat dissipation due to aluminium sections - Integrated handle elements with vertical section - Protection class IP65 - Front panels internally-mounted or externally-mounted - Internal grooves for fixing components - Product features SL (in addition to CC-4000) - Two enclosure depths (55 und 99 mm) - Slimline design - For encapsulating flat IPCs
