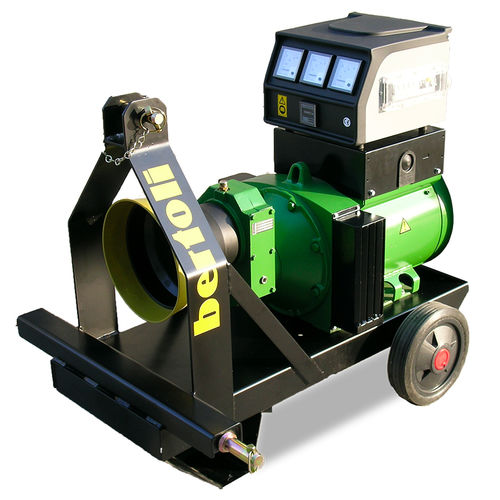

Diesel generator set 15 CAR SERIES

three-phaseair-cooled

We design and manufacture cardan generators driven by the tractor PTO, connected to the unit’s multiplier via a cardan shaft. The power ranges from 20 to 105 kVA, to 1500 rpm from 12 to 30kVA to 3000 rpm. Every unit is equipped with a three-point anti-tip hitch and a carriage of up to 40kVA to move it. AVRs (electronic voltage regulators) and board instruments (frequency meter, ammeter, voltmeter) are installed as standard. Upon request, the IP44 kit is installed for protection against dust and atmospheric agents. PROTECTION: IP23 – IP44 (on request) MULTIPLIER : with helical gears SETUP: on an electrowelded steel base, 3-point lift and carriage of up to 30 kVA for moving it. ALTERNATOR : 4-pole, three-phase, self-regulated and self-energised, brushless, with AVR ELECTRICAL PANEL: installed on the alternator with interposed vibration dampers Analogue instruments to read the voltage, current and frequency parameters. SOCKETS: 1 single-phase socket + 1 three-phase socket, protected by a circuit breaker and differential Alternator: Mecc Alte or Zanardi Carriage for Moving 3-point lift Panel with a socket panel and Switches 3 Analogue A/V/Hz instruments IP44 Kit on request
