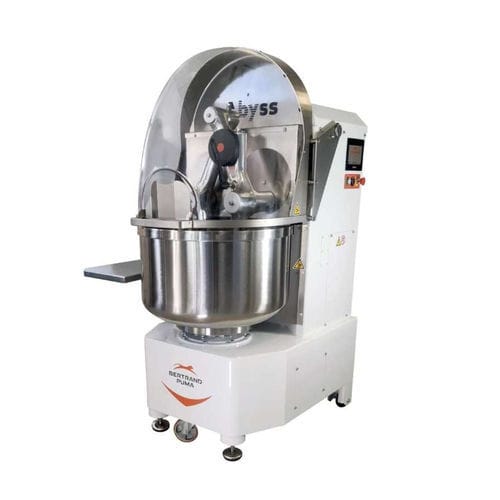

Twin-arm dough mixer ABYSS series
for bakeriesfixed bowlfixed head

twin-arm dough mixer
twin-arm dough mixer
twin-arm dough mixer
twin-arm dough mixer
twin-arm dough mixer
Add to favorites
Compare this product


Characteristics

Type
twin-arm
Applications
for bakeries
Bowl characteristics
fixed bowl
Tool characteristics
fixed head
Other characteristics
stainless steel
Installation
floor-standing
Capacity

60 l, 80 l, 130 l, 180 l
(16 gal, 21 gal, 34 gal, 48 gal)

Flour capacity

Min.: 2 kg
(4 lb)

Max.: 80 kg
(176 lb)

Tool speed

Min.: 36 rpm
(226 rad.min-1)

Max.: 82 rpm
(515 rad.min-1)

Bowl speed

Min.: 4 rpm
(25 rad.min-1)

Max.: 7 rpm
(44 rad.min-1)

Power

2.2 kW, 4 kW, 11 kW
(2.99 hp, 5.44 hp, 14.96 hp)

Machine width

650 mm, 786 mm, 886 mm
(26 in, 31 in, 35 in)

Machine depth

988 mm, 1,211 mm, 1,323 mm
(39 in, 48 in, 52 in)

Machine height

1,942 mm, 2,050 mm, 2,265 mm
(76 in, 81 in, 89 in)

Machine weight

366 kg, 370 kg, 590 kg, 904 kg
(807 lb, 816 lb, 1,301 lb, 1,993 lb)

Description

ABYSS twin-arm mixers perfectly reproduce the artisan’s gesture by gently kneading all types of dough — from the most hydrated to the most complex — for optimal oxygenation without overheating. - Full touch control: A manual mode allows you to adjust the speed at any time thanks to the speed variator to adapt to the type of dough. An automatic mode works on a recipe basis so that you do not need to intervene during mixing. - Stop flour dust : a transparent cover protects the baker from accidental inhalation of flour dust while providing good visibility of the preparation. A trapdoor allows the insertion of ingredients during the mixing process. - the ventilation, integrated in an aesthetic way, allows to always maintain the right degree of humidity in the tank. - Ergonomic : In order to reduce the strenuousness associated with de-vatting and cleaning operations, ABYSS has been designed with an ergonomic tank height of 1 meter to improve the working comfort of bakers every day. - Easy cleaning : To further facilitate the operator’s task, a mechanical device ensures that the arms always stop in the « opened » position whenever the equipment stops, thus giving better access for emptying or cleaning the tank. - Robust : The sturdy stainless steel tank rests on a reinforced base capable of withstanding all mechanical stresses generated during mixing. The equipments of the ABYSS range are twin-arm mixers that reproduces the baker’s ancestral manual gesture.
