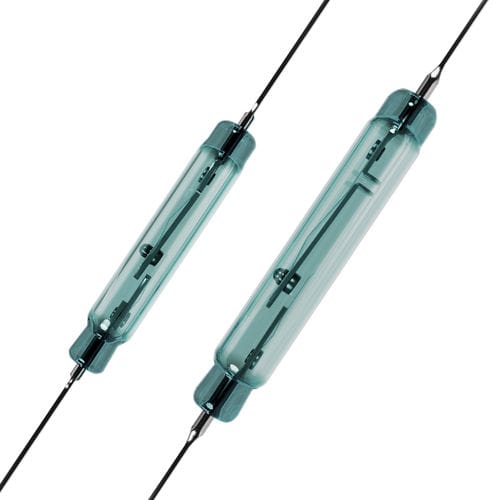

High-power reed switch BRE/BRG series

inductiveaxial-leadminiature

By adopting Bestact as a contacts for power relays and limit switches, higher reliability and durability can also be expected. ◆Carry Current:13A ◆Contact Capacity:150W ◆Insulation Resistance:10¹³Ω ◆Inductive load(L/R=100ms) ◆Small Size ◆Able to handle a wide range of loads, including micro-loads and inductive loads. ◆Type: BRE-13153A Specification Contact Rating: 150W Switching Voltage: 300VDC Switching Current: 3ADC Min. Switching Load: 1mA 5VDC Inductive Load Switching Current: 0.5A 100VDC Carry Current:13ADC Breakdown Voltage:1300VDC Insulation Resistance:10¹³Ω Size:37mm Contact Form: 1a (NO) ◆Type: BRE-07100A Specification Contact Rating: 100W Switching Voltage: 250VDC Switching Current: 2ADC Min. Switching Load: 1mA 5VDC Inductive Load Switching Current: 0.3A 100VDC Carry Current:10ADC Breakdown Voltage:700VDC Insulation Resistance:10¹³Ω Size:28mm Contact Form: 1a (NO) Please refer to the datasheet on the product page for more information.
