- Beswick Engineering Co, Inc.

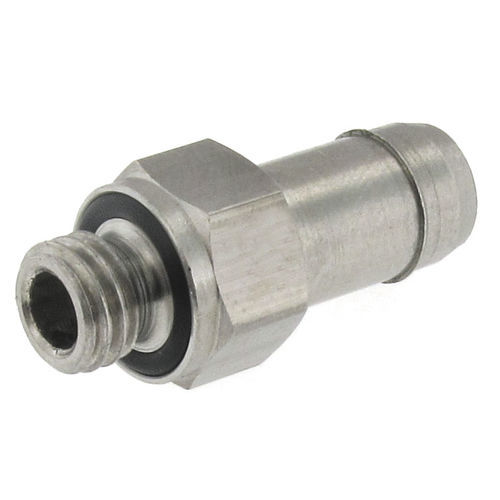

Pneumatic fitting MH-..-.hydraulicthreadedbarbed
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic, pneumatic
- Attachment
- threaded, barbed
- Material
- stainless steel
- Gender
- male
- Other characteristics
- O-ring face seal
- Diameter
Max.: 6.4 mm
(0.252 in)Min.: 0.8 mm
(0.031 in)- Operating pressure
Max.: 100 psi
Min.: 0 psi
Description
Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing.
Features
Beswick’s trademark O-ring seal design provides a leak-tight joint.
Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.
Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material.
Note: MH-1012 is also available in Titanium. The part number is: MH-1012-T2. Consult factory for more details.
