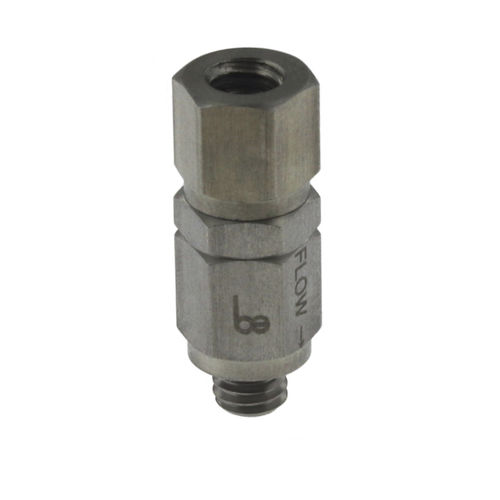

Membrane check valve CKV-.-..-.

threadedminiaturefor the chemical industry

The CKV series check valve permits free flow in one direction and no flow (checked) in the opposite direction. This valve is specified in many applications because of its very low cracking pressure (typically less than 0.5 psig), its excellent repeatability, and leak-tight operation. The unique design of the housing permits the valve to handle a back pressure of up to 250 psig. Custom variations of barbed and threaded bodies are available as well as variations with built-in screen filters or sintered metal filters. Contact the factory for details. Approximate Weight: 6-8g in brass and 303 stainless. Weight will vary slightly, depending on configuration. Note: Check valve elements are designed for regular use. If the valve is not used for an extended period of time, the duckbill element may stick upon first use, resulting in a one-time higher cracking pressure requirement. Features Duckbill checking element allows for cracking pressures around 0.5 psig. Check valve elements are typically actuated by reverse pressure and are best suited for applications with over 5 psig of back pressure. If the valve is required to check with minimal back pressure, contact a Beswick applications engineer to discuss available options.
