- Beswick Engineering Co, Inc.

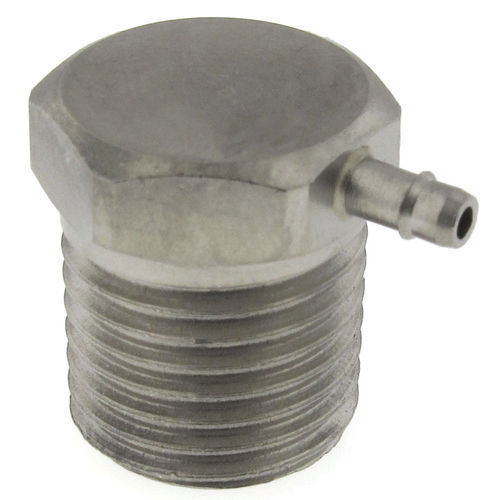

Hydraulic fitting MPAL-4pneumaticthreadedbarbed
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic, pneumatic
- Attachment
- threaded, barbed
- Configuration
- elbow
- Material
- nickel-plated brass, stainless steel
- Gender
- female
- Other characteristics
- NPT, external thread, miniature
- Diameter
Max.: 6.4 mm
(0.252 in)Min.: 1.6 mm
(0.063 in)- Operating pressure
Max.: 100 psi
Min.: 0 psi
Description
Miniature, fixed position elbow fitting, with 1/4″ NPT external thread and built-in barb.
Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing.
Features
Beswick’s proprietary single edged “line contact” barb allows tubing to be pushed onto the fitting easily by hand, while still providing exceptional holding power. It also insures a leak tight connection at the tubing interface.
Note: Suggested tube ID is for polyurethane or vinyl tubing. Consult factory if you plan to use a different tubing material.
