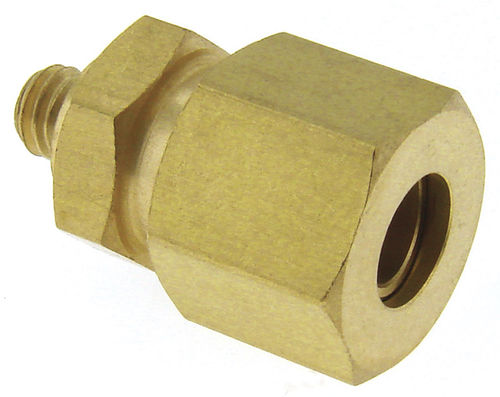

Hydraulic fitting MCB-14..-.

threadedcompressionbrass

Miniature compression fitting with 10-32 external thread, for 1/4″ OD stiff plastic or metal tubing. Max Pressure Rating: 1,000 psig in brass and 3,000 psig in stainless steel, when used with high pressure metal tubing. When using stiff plastic tubing, the burst pressure of the tube is typically the limiting factor. Note: When using our stainless steel ¼” compression fittings in certain applications the use of isopropyl alcohol on the compression threads can help aid installation. If you are using stainless steel or thick-walled tubing or if you have put the compression fitting components through an ultra-pure cleaning process please contact a Beswick Applications Engineer for additional information. Features Beswick compression fittings give you the ability to operate at high pressures and temperatures while maintaining a small envelope. Beswick’s ferrules provide for a leak-tight tubing connection while a captured O-ring ensures a reliable face seal for male threaded fittings. Easy to install without special tools.
