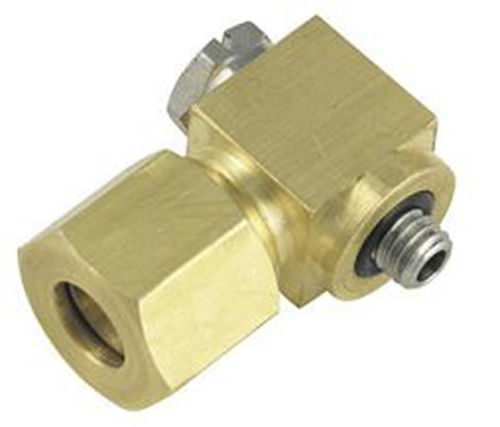

Hydraulic fitting MCBL-14.-..

threadedcompressionelbow

Miniature compression fitting elbow with 10-32 external thread, for 1/4″ OD stiff plastic or metal tubing. Adjustable position design. Max Pressure Rating: 1,000 psig in brass and 3,000 psig in stainless steel, when used with high pressure metal tubing. When using stiff plastic tubing, the burst pressure of the tube is typically the limiting factor. Body Material: Brass: 303 stainless steel stud with brass body, nut and single piece ferrule. 303 stainless steel: 303 stainless steel stud, body, nut and two piece ferrule. 316 stainless steel: 316 stainless steel stud, body, nut and two piece ferrule. Ferrule Material: When PEEK is selected, the metallic ferrule(s) are replaced with a single piece PEEK ferrule. Note: When using our stainless steel ¼” compression fittings in certain applications the use of isopropyl alcohol on the compression threads can help aid installation. If you are using stainless steel or thick-walled tubing or if you have put the compression fitting components through an ultra-pure cleaning process please contact a Beswick Applications Engineer for additional information. Features Beswick compression fittings give you the ability to operate at high pressures and temperatures while maintaining a small envelope. Beswick’s ferrules provide for a leak-tight tubing connection while a captured O-ring ensures a reliable face seal for male threaded fittings. Easy to install without special tools.
