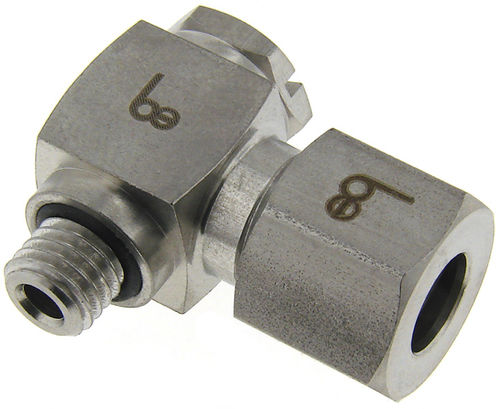

Hydraulic fitting MCBL-1414..-.

threadedcompressionelbow

Miniature compression fitting elbow with ¼-28 external thread, for 1/4″ OD stiff plastic or metal tubing. Max Pressure Rating: 3,000 psig in stainless steel, when used with high pressure metal tubing. When using stiff plastic tubing, the burst pressure of the tube is typically the limiting factor. Ferrule Material: When PEEK is selected, the metallic ferrule(s) are replaced with a single piece PEEK ferrule. Note: When using our stainless steel ¼” compression fittings in certain applications the use of isopropyl alcohol on the compression threads can help aid installation. If you are using stainless steel or thick-walled tubing or if you have put the compression fitting components through an ultra-pure cleaning process please contact a Beswick Applications Engineer for additional information. Features Beswick compression fittings give you the ability to operate at high pressures and temperatures while maintaining a small envelope. Beswick’s ferrules provide for a leak-tight tubing connection while a captured O-ring ensures a reliable face seal for male threaded fittings. Easy to install without special tools.
