Hydraulic fitting QDC-10..-.

pneumaticquickstainless steel

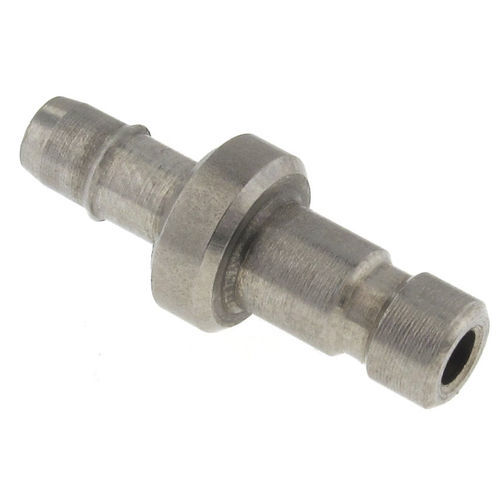

External half of our standard snap-type quick disconnect assembly. This QDC-101-E series is compatible with both the single shut off QDC-101-I series and QDC-101-I-NS no shut off series internal quick disconnect halves. Max Pressure Rating: 500 psig while connected. Take caution when disconnecting lines under pressure since the external pin has no shut-off and will vent to atmosphere when disconnected. Due to this, our recommended maximum pressure for connecting or disconnecting the assembly is 120 psig.* *Note that the pressure rating of configurations using barbs will likely be limited by tubing selection. Features Snap connection and releasing sleeve disconnection. Compatible with both single shut off and no shut off internal QDC-101 connecting halves. QDC-101-E & QDC-102-E must be paired with a QDC-101-I or QDC-101-I-NS half for a complete quick disconnect assembly. The QDC-101-E series is NOT compatible with the QDC-101-DS double shut off series.
