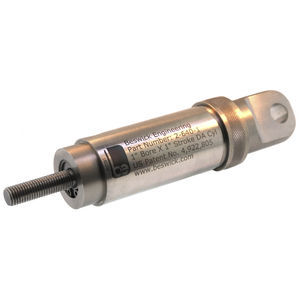

Pneumatic cylinder 2-600..single-actingstainless steelbrass
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Configuration
- single-acting
- Material
- stainless steel, brass
- Other characteristics
- threaded, miniature
- Stroke
0.15 in
- Pressure
Max.: 250 psi
Min.: 0 psi
- Force
Max.: 0.15 N
Min.: 0.14 N
Description
The 7/16″ bore air cylinder is available with 5/32″ stroke and features a spring return option.
Force Factor: 0.150 in extension, 0.138 in retraction.
Approximate Weight: 31g in brass. Weight will vary slightly, depending on configuration.
Porting: 10-32 internal threaded side inlet, 10-32 internal threaded end inlet, or 1/8” external NPT end inlet.
Materials: Brass body with 300 series Stainless Steel internals. Buna-N seals.
