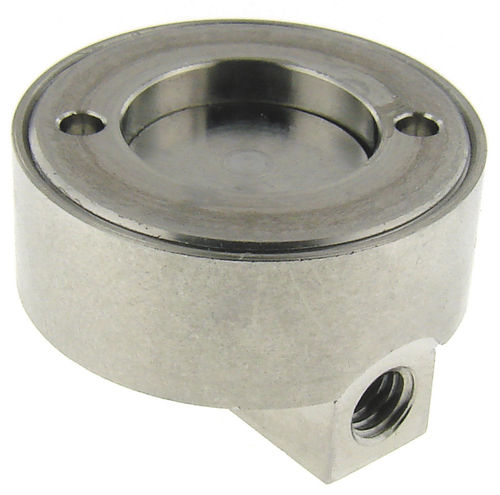

Gas relief valve RV2-1010-.-..for airfor waterstainless steel
Add to favorites
Compare this product
Characteristics
- Fluid
- for water, for air, for gas
- Body material
- stainless steel, brass
- Other characteristics
- compact, threaded, diaphragm, piston, miniature
- Controlled pressure
Min.: 0 psi
Max.: 500 psi
- DN
1.02 mm
(0.04 in)
Description
Beswick’s RV2 series miniature piston relief valve is an excellent choice for applications requiring a valve which opens on rising pressure. The RV2 is factory set to your desired relief pressure. The design is compact, and it is an outstanding choice for pressure relieving applications from 3 to 50 psig.
Cracking Pressure Range: Recommended for cracking pressures in the 3-50 psig range.
Approximate Weight: 41g in brass and stainless steel (303 & 316). Weight will vary slightly, depending on configuration.
Porting: 10-32 internal threaded inlet and outlet ports.
Features
Tamper proof factory setting
10-32 threaded ports
