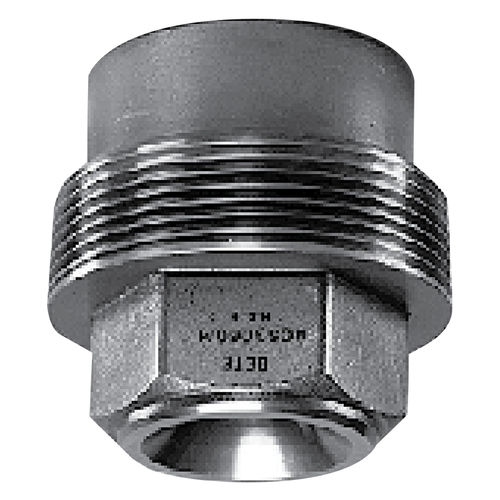

Spray nozzle NCS seriesfor liquidsfull-conestainless steel
Add to favorites
Compare this product
Characteristics
- Function
- spray
- Fluid
- for liquids
- Stream
- full-cone
- Material
- PTFE, polypropylene, PVC, stainless steel, brass
- Applications
- for the food industry, for the steel industry, for the chemical industry, firefighting, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 90°, 70°, 80°, 110°, 100°, 75°
- Other characteristics
- compact, NPT, male, female, BSP
- Orifice diameter
Max.: 1.38 mm
(0.054 in)Min.: 0.22 mm
(0.009 in)- Flow
Max.: 580 us gal/min
(2,195.54 l/min)Min.: 2.01 us gal/min
(7.61 l/min)- Pressure
Max.: 100 psi
Min.: 3 psi
Description
Fits in Tight Spaces and Performs Like a Full-Size Nozzle
DESIGN FEATURES
It takes no more room than a pipe plug yet performs like a full-size nozzle
Small projection
Can be used with standard pipe couplings to form a female nozzle, elbows to form a right-angle nozzle, or tees or crosses for multiple installations
HOW SPRAY PATTERN IS ACHIEVED
Atomization is achieved by the water spun inside the nozzle and exiting an orifice
Produces medium to coarse droplet size
More uniform pattern than spiral nozzles
