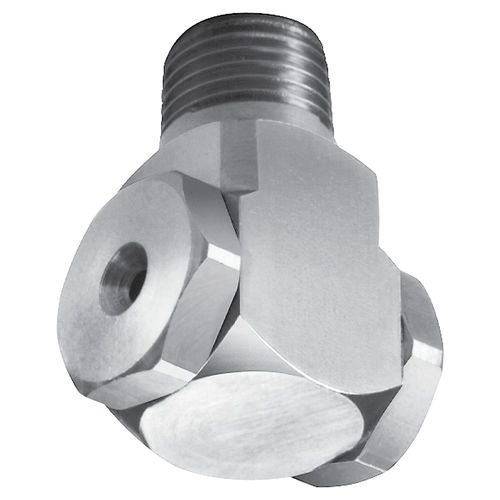

Spray nozzle WTZ seriesfor liquidsfull-conestainless steel
Add to favorites
Compare this product
Characteristics
- Function
- spray
- Fluid
- for liquids
- Stream
- full-cone
- Material
- PVC, stainless steel, brass, alloy
- Applications
- for the food industry, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 90°, 110°, 100°
- Other characteristics
- male, female
- Flow
Max.: 49 l/min
(12.94 us gal/min)Min.: 0.18 l/min
(0.05 us gal/min)
Description
Clog-Resistant Tangential Spray Nozzles
No internal parts, clog-resistant
Uniform distribution
Large free passage
HOW SPRAY PATTERN IS ACHIEVED
The spray pattern is achieved by introducing liquid into the body of the nozzle by way of a slight angle, so the liquid swirls around the body cavity before exiting the orifice.
